Smart Series

Trulite Smart Series, between the surface and the surface to achieve a perfect seamless connection!

HYPOTENUSE DESIGN

The module with 45 degrees level,
you can install the inner or outer arc shape screen,
Applicable to a variety of occasions.

Colorful display
of delicate

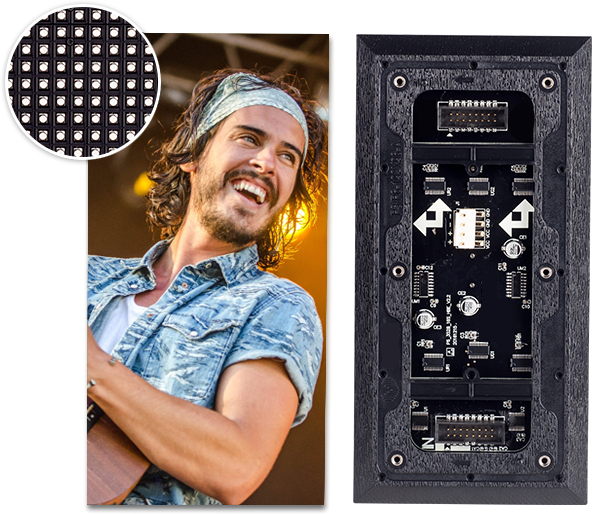

High-quality led chip design, high refresh,
high gray level,Show delicate.

CUT COSTS

Changeable modules for different use,
saving labor and repair cost

ACCORDING TO USER NEEDS CUSTOM

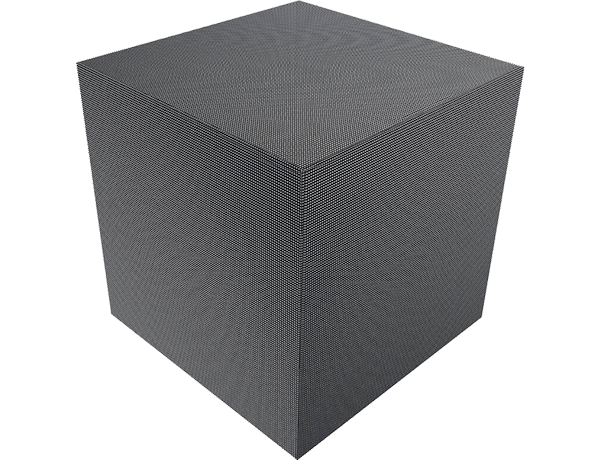

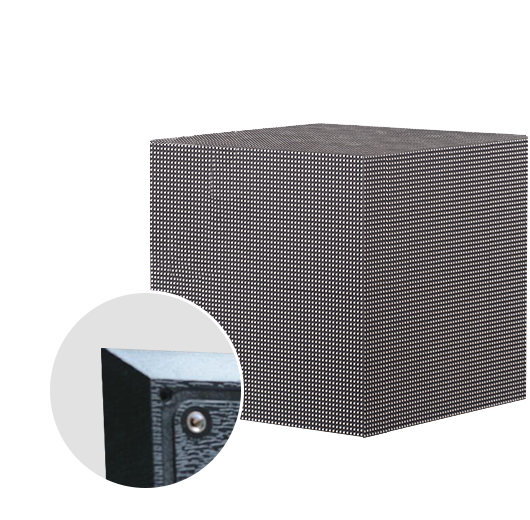

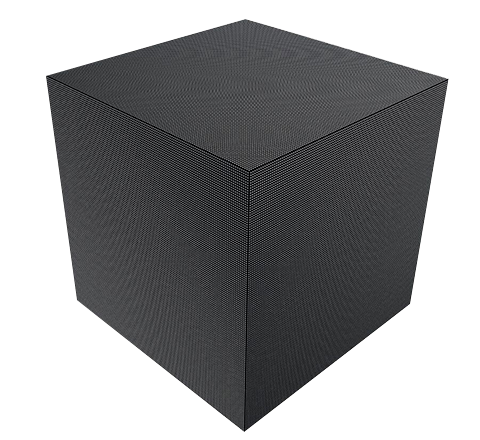

Cube series can be the same as the rental LED display, all-aluminum structure design, light weight, solid structure, LED cube installation can be based on customer requirements, designed for mobile, lifting.

SPECIAL MODULE DESIGN

applicable to cylindrical screen, the smallest diameteris 0.68m

WITH OUR SCREEN

you can install any shape for unique dispay,
which will help expand your good reputation?

TECHNICAL PARAMETERS

Model No.
TSP3(Indoor)
TSP6(Indoor)
Pixel Pitch
3mm
6mm
LED
SDMD2020
SDMD3528
Module Resolution(dots/㎡)
64*32
32*16
Pixel Density
111111dots/㎡
27,777dots/㎡
Cabinet Resolution(dots/㎡)
192*192
128*128
Support hanging or not
Yes
Yes
Best Viewing Angle
H:160°;V:110°
H:160°;V:110°
Max Power Consumption
700W/㎡
350W/㎡
Average Power Consumption
240W/㎡
116W/㎡
Grey Scale
16bits
16bits
Driving Method
1/32scan
1/16scan
Refresh Rate
1920Hz
1920Hz
Brightness(cd/㎡)
800~1000
800~1000
Protection Level
FrontlP40/BacklP21
FrontlP40/BacklP21
